DESCRIPTION:

When lower material cost is prioritized, the PEX fittings connection system is the optimal solution for PEX tubing in water distribution systems.

FEATURES AND BENEFITS:

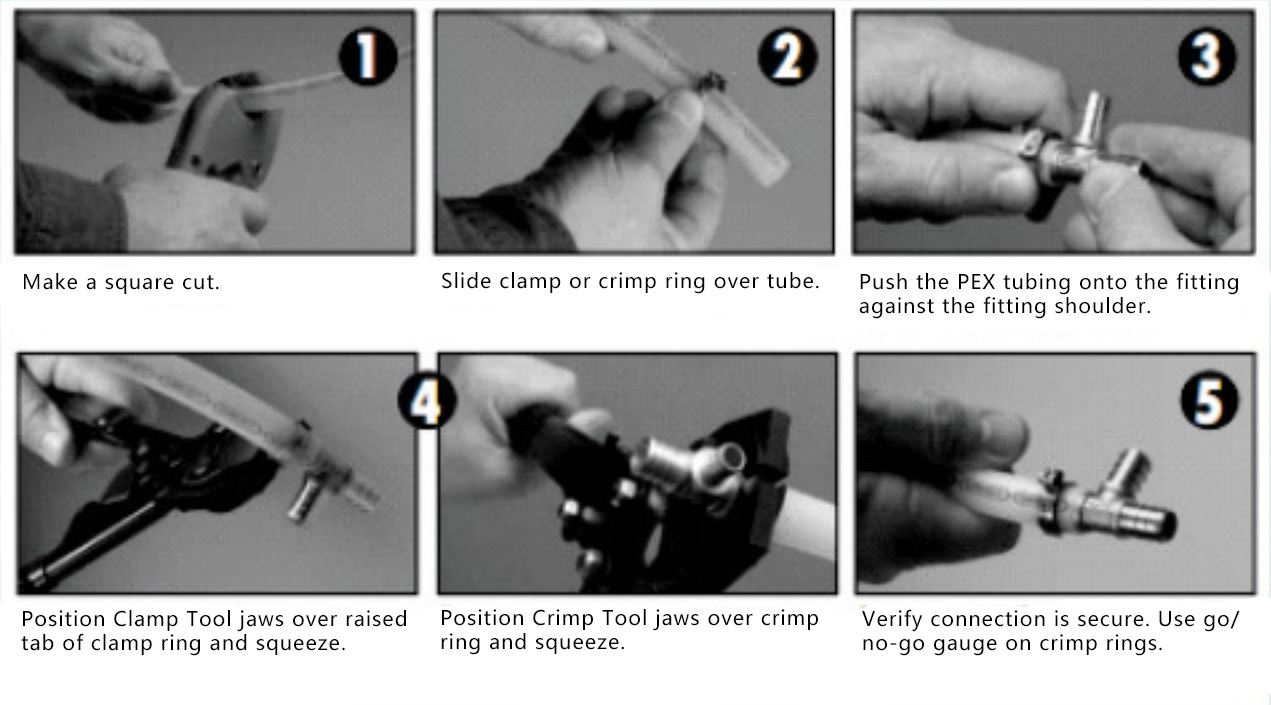

CLAMP Ring Connections

Time-Saving Design:

Universal tool compatible with all sizes (3/8"–1").

Eliminates the need for go/no-go gauge verification post-installation.

Economic Advantage: Reduces equipment investment by 40% compared to traditional methods.

CRIMP Ring Connections

Durability: Copper crimp rings ensure leak-proof performance (tested at 1.6 MPa).

Tool Compatibility: Heavy-duty crimping tool with interchangeable jaws requires no calibration.

Quality Control: Each joint can be verified using a go/no-go gauge.

SPECIFICATION DATA:

Materials:

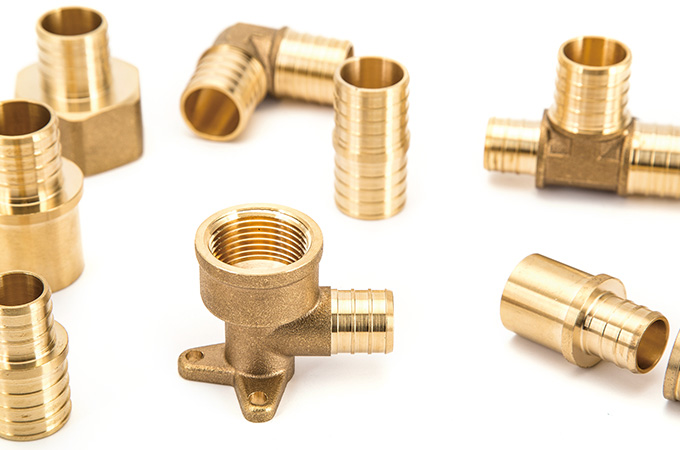

Barb Fittings: DZR Brass (Lead-free compliant)

Clamp Rings: 304 Stainless Steel (ASTM A240)

Crimp Rings: Copper (ASTM B88)

Certifications:

PEX Fittings & Crimp Rings:

Meet ASTM F1807 (Mechanical Joints for PEX Tubing).

Pressure Rating: ≤1.6 MPa at 93°C.

PEX Fittings & Clamp Rings:

Meet ASTM F2098 (Stainless Steel Clamp Connections).

Corrosion Resistance: Passes 5,000-hour salt spray test (ASTM B117).

System Compliance:

All Hongdaer PEX system components are NSF/ANSI 14 certified for potable water applications.

Additional Listing: NSF/ANSI 61 (Drinking Water Safety).
